`Mounting Dimentions`

#1 · February 5, 2019, 9:49 pm

Quote from MAMEBase on February 5, 2019, 9:49 pm
Your replacement Star Wars Yoke looks amazing, and I'm hoping to be able to incorporate it into a project I'm currently working on.
To that end, I see that the schematics for the product are not yet available. Would you be able to disclose the mounting dimensions (Specifically the amount of space needed for clearance from the mounting plate to the rear of the device)?

Your replacement Star Wars Yoke looks amazing, and I'm hoping to be able to incorporate it into a project I'm currently working on.



To that end, I see that the schematics for the product are not yet available. Would you be able to disclose the mounting dimensions (Specifically the amount of space needed for clearance from the mounting plate to the rear of the device)?

Matt C has reacted to this post.

#2 · March 9, 2019, 9:38 pm

Quote from sysop on March 9, 2019, 9:38 pm
Quote from MAMEBase on February 5, 2019, 9:49 pm Your replacement Star Wars Yoke looks amazing, and I'm hoping to be able to incorporate it into a project I'm currently working on. To that end, I see that the schematics for the product are not yet available. Would you be able to disclose the mounting dimensions (Specifically the amount of space needed for clearance from the mounting plate to the rear of the device)?
Help me understand MAMEbase what you are asking. Do you mean how long the screws are that extend from the mounting base? Or do you mean how long the gear assembly is past the end of the mounting base?

Quote from MAMEBase on February 5, 2019, 9:49 pm Your replacement Star Wars Yoke looks amazing, and I'm hoping to be able to incorporate it into a project I'm currently working on. To that end, I see that the schematics for the product are not yet available. Would you be able to disclose the mounting dimensions (Specifically the amount of space needed for clearance from the mounting plate to the rear of the device)?


Help me understand MAMEbase what you are asking.  Do you mean how long the screws are that extend from the mounting base? Or do you mean how long the gear assembly is past the end of the mounting base?

-- mydentist

"we fight for the user"

#3 · March 11, 2019, 3:57 am

Quote from MAMEBase on March 11, 2019, 3:57 am
That would be how long the gear assembly is past the mounting base.

That would be how long the gear assembly is past the mounting base.

#4 · May 18, 2019, 4:38 am

Quote from Doug on May 18, 2019, 4:38 am

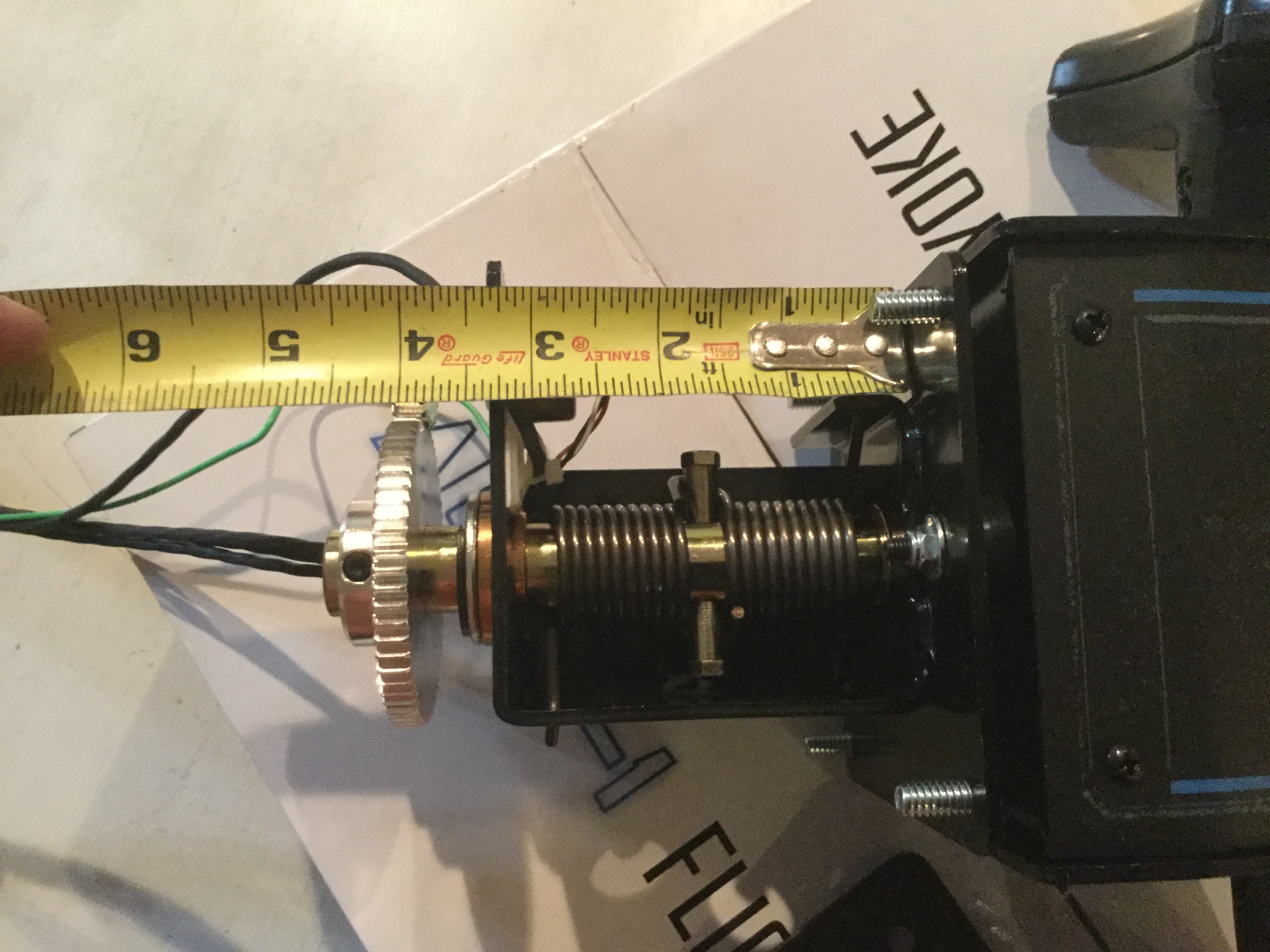

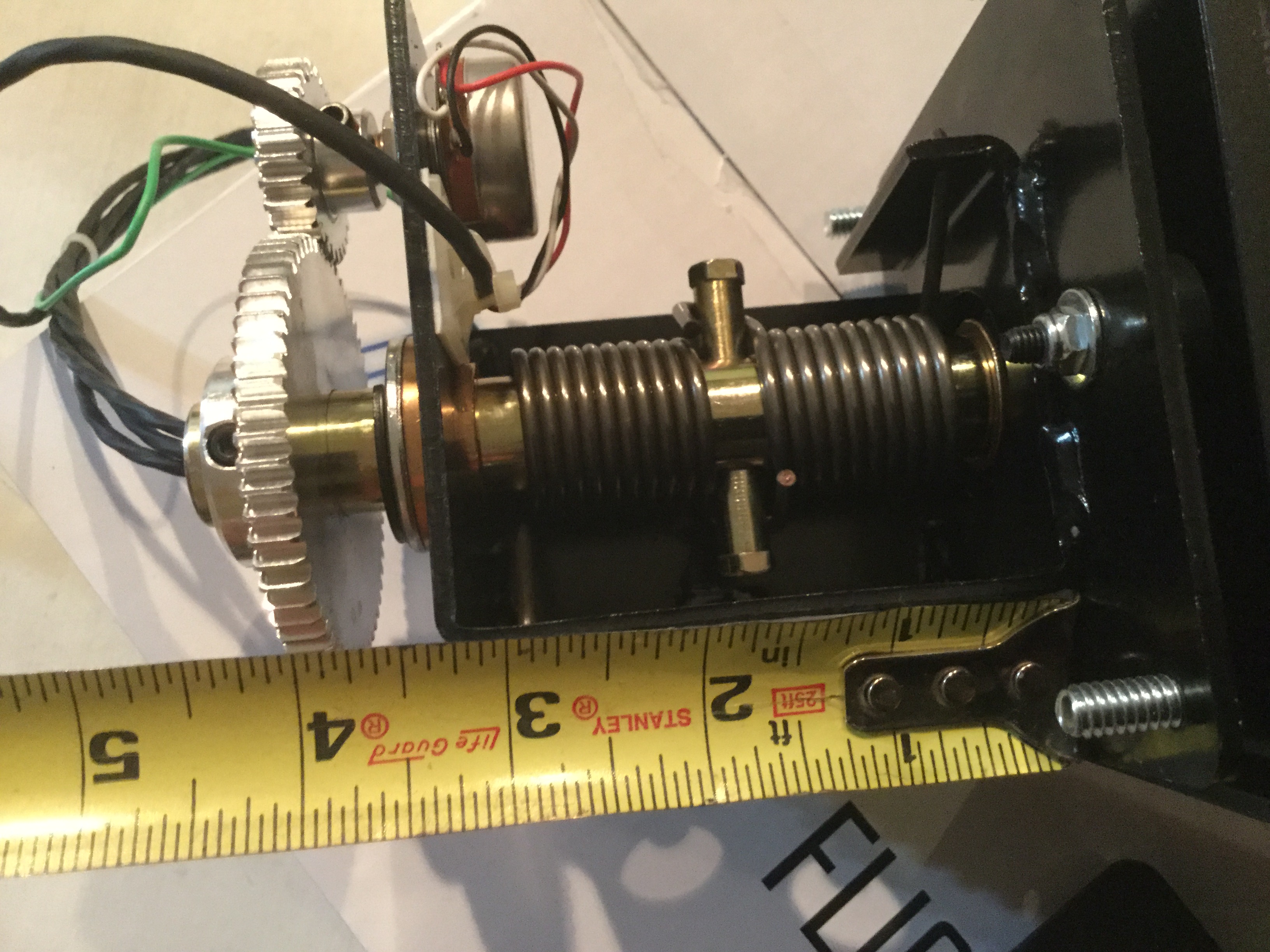

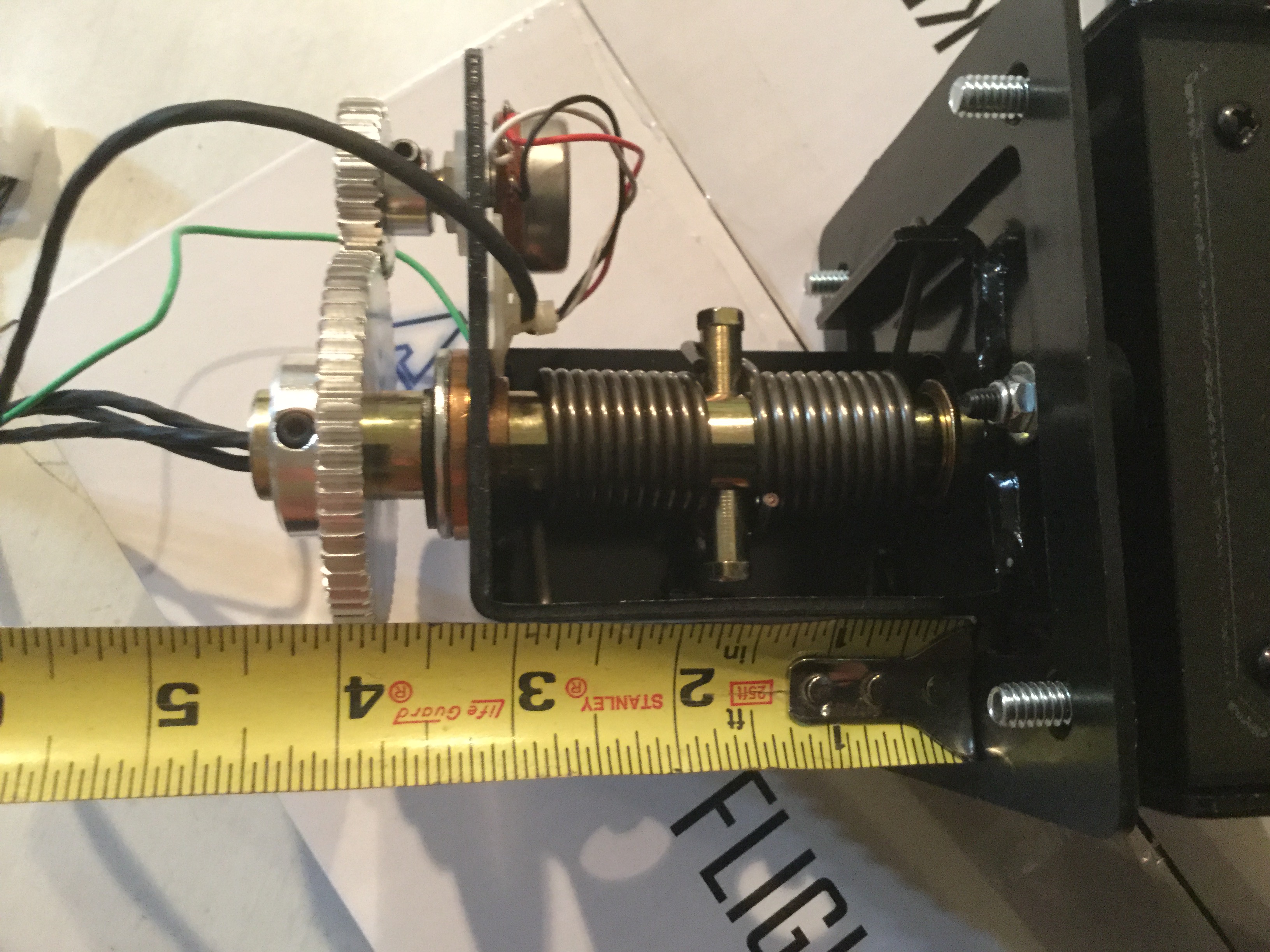

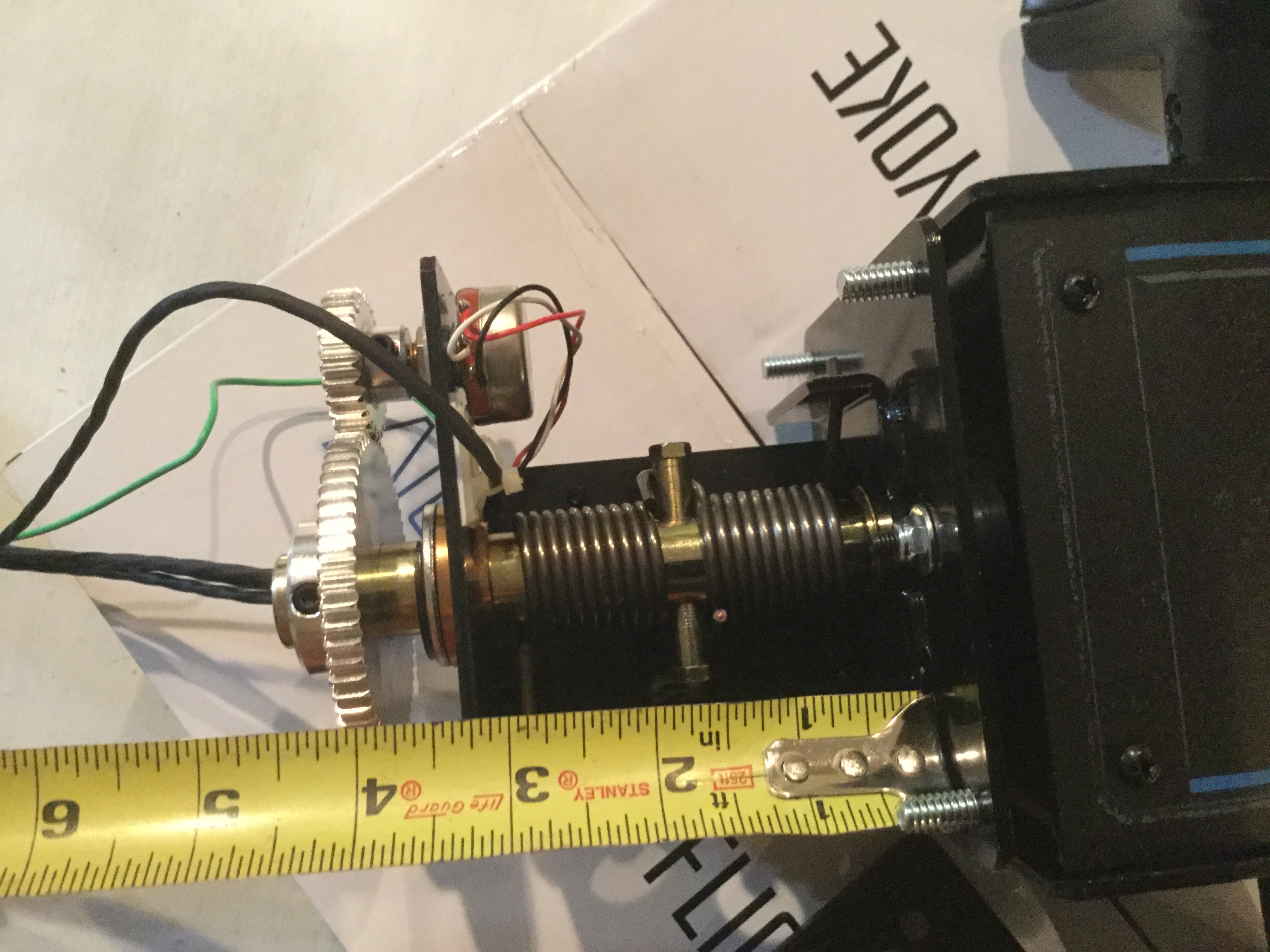

Here are some photos with some measurements from the back of the yoke to the gears, with the mounting plate off it is 3 3/8 to just past the plate before the gears. Hopefully this will help you with your measurements and if you need further information please post here or contact me at doug@alan-1.com. Thanks

Here are some photos with some measurements from the back of the yoke to the gears, with the mounting plate off it is 3 3/8 to just past the plate before the gears. Hopefully this will help you with your measurements and if you need further information please post here or contact me at doug@alan-1.com. Thanks



Uploaded files:

#5 · May 20, 2019, 9:33 pm

Quote from MAMEBase on May 20, 2019, 9:33 pm
Perfect!
That's exactly what I needed to know. One more question; What would be the recommended mounting angle for the yoke? (Assuming a scratch build cabinet/control panel)

Perfect!


That's exactly what I needed to know.
One more question; What would be the recommended mounting angle for the yoke? (Assuming a scratch build cabinet/control panel)
